ATtiny25, ATtiny45, ATtiny85 Complete Guide for Makers and Engineers

A practical and comprehensive look at the tiny AVR microcontroller family

The ATtiny25 ATtiny45 and ATtiny85 are widely used in embedded electronics because they offer a strong balance of performance, size and power efficiency. These microcontrollers are ideal for compact devices including wearables, sensor modules, lighting controllers, robotics and low-power automation systems.

This guide covers everything from pinout and memory to peripherals programming methods and practical design tips. It is written to be fast to read and highly informative for both beginners and professionals.


1. Why the ATtiny25 ATtiny45 ATtiny85 Remain So Popular

According to the official Atmel datasheet, these devices use an 8-bit AVR RISC architecture capable of nearly one instruction per clock cycle. This allows efficient execution of control loops timing routines sensor sampling and communication tasks. The internal oscillator, low-power modes and compact 8-pin package make them ideal for battery-driven and space-limited designs.

Key strengths

  • Works from 1.8 V to 5.5 V
  • Runs up to 20 MHz at higher voltages
  • Integrated 8 MHz calibrated RC oscillator
  • Six multipurpose GPIO pins
  • SPI and I2C compatible communication using USI
  • 10-bit ADC with multiple channels
  • Low power consumption down to microamp levels during sleep
  • Available in PDIP, SOIC and QFN packages

Memory options

The three variants differ mainly by their memory size.

DeviceFlashSRAMEEPROM
ATtiny252 KB128 B128 B
ATtiny454 KB256 B256 B
ATtiny858 KB512 B512 B

Most makers choose the ATtiny85 for projects requiring libraries or complex logic, while the ATtiny25 is excellent for simple controllers or repetitive logic tasks.


2. ATtiny25 ATtiny45 ATtiny85 Pinout Explained

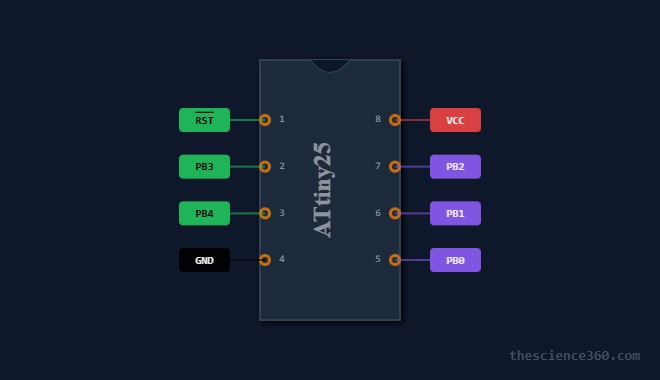

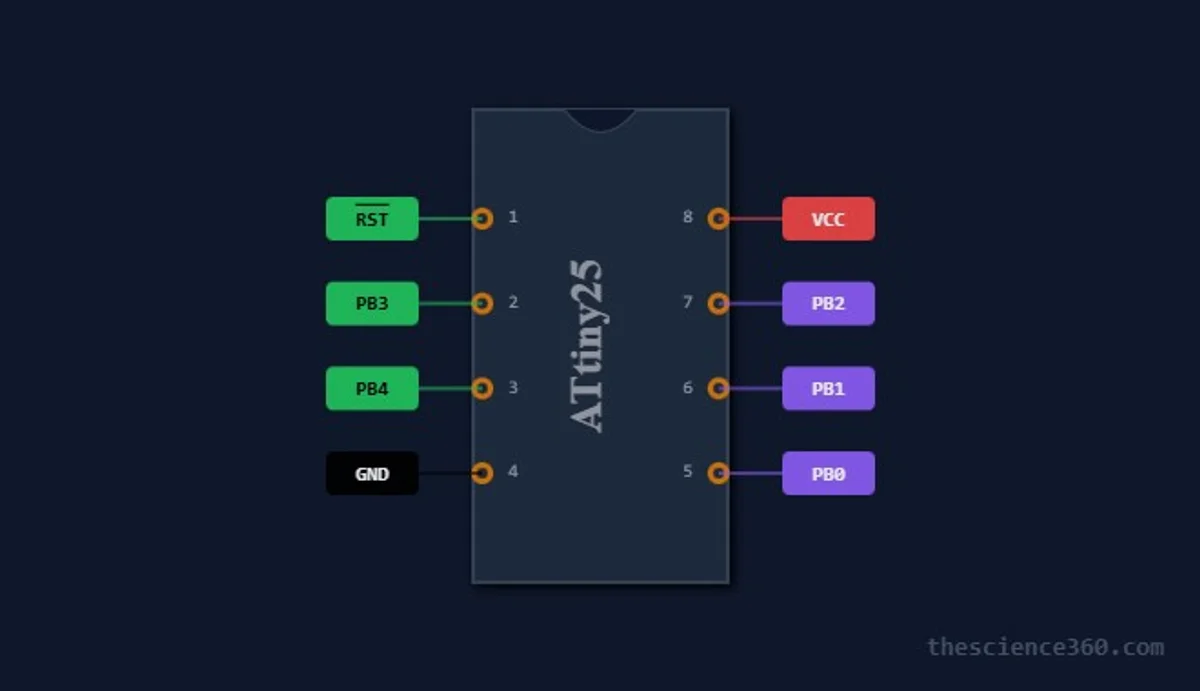

The devices share the same 8-pin pinout, making it easy to upgrade or downgrade based on memory needs. The pinout diagram on page 2 of the datasheet shows the mapping clearly.

Pin functions

PinLabelPrimary Roles
1PB5Reset, ADC0, PCINT5, debugWIRE
2PB3XTAL1, CLKI, ADC3, OC1B
3PB4XTAL2, CLKO, ADC2
4GNDGround
5PB0MOSI, SDA, AIN0, OC0A, AREF
6PB1MISO, AIN1, OC0B, OC1A
7PB2SCK, SCL, ADC1, INT0, Timer0
8VCCPower

Each pin supports several alternate functions, so planning pin usage carefully is important for larger projects.


3. Internal Architecture and Processing Capability

The ATtiny series uses a compact AVR RISC architecture with 32 working registers that connect directly to the arithmetic logic unit. This eliminates unnecessary memory access cycles and significantly improves execution speed. The datasheet notes that the microcontroller can achieve one MIPS per MHz, improving power and timing efficiency compared to older classic microcontrollers.

What this means for real applications

  • Smooth control loops for robotics
  • Stable timers for PWM generation
  • Reliable sampling for sensors
  • Consistent timing without jitter

4. Memory System Overview

Flash memory

Used for program storage.
Reprogrammable up to ten thousand times.

EEPROM

For storing configuration values, calibration data or logs.

SRAM

Stores variables stack data and buffers.

Since the ATtiny85 has the most memory, it is recommended for applications using communication libraries or handling real-time data.


5. Peripherals That Expand What the ATtiny Can Do

Despite its small package the ATtiny25 ATtiny45 ATtiny85 include a surprisingly rich set of peripherals.

5.1 Timers and PWM capability

  • Timer Counter 0: 8-bit with two PWM outputs
  • Timer Counter 1: High-speed 8-bit timer with dead-time generator and separate prescaler

These timers make the ATtiny family suitable for:

  • LED brightness control
  • Motor speed control
  • Generating precise waveforms
  • Driving servos

5.2 10-bit ADC

Includes four single-ended channels and two differential channels with programmable gain. The ADC can measure voltages sensors and even temperature thanks to an internal temperature sensor referenced in the datasheet.

Ideal for:

  • Motion sensors
  • Temperature loggers
  • Battery measurement
  • Analog controllers

5.3 USI (Universal Serial Interface)

The USI can act as:

  • SPI master or slave
  • Two-wire I2C-like interface
  • General synchronous serial interface

Although not a full I2C hardware unit, it is flexible enough for communicating with most sensors or memory chips.

5.4 Watchdog timer

Has its own oscillator allowing the microcontroller to recover automatically from program hangs or unexpected faults.

5.5 Analog comparator

Useful for:

  • Zero-cross detection
  • Battery threshold checks
  • Overcurrent detection

6. Clock Sources and Performance Scaling

The ATtiny series supports multiple clock sources, including the internal RC oscillator, external crystal and external clock input. A PLL option exists in some revisions for generating a fast peripheral clock, as seen in the datasheet block diagrams.

Designers can fine-tune performance and energy use using the clock prescaler. Lower clock speeds reduce power consumption while still allowing timing-driven tasks to run accurately.


7. Power Management and Sleep Modes

Power efficiency is one of the main reasons these devices continue to be used widely. The ATtiny25 ATtiny45 ATtiny85 include several power-saving modes.

Available sleep modes

  • Idle mode
  • ADC Noise Reduction mode
  • Power down mode

Power down mode brings consumption as low as 0.1 microamp at 1.8 V according to the datasheet. This is ideal for IoT sensors and wearable devices.

Techniques to reduce power

  • Turn off unused peripherals via the Power Reduction Register
  • Disable the ADC when not actively measuring
  • Rely on watchdog interrupts for periodic wakeups
  • Use pin change interrupts for responding to events

8. Programming Methods

8.1 ISP (In-System Programming)

The most common method is through SPI using:

  • PB0 (MOSI)
  • PB1 (MISO)
  • PB2 (SCK)
  • PB5 (RESET)

Popular programmers:

  • USBasp
  • AVRISP mkII
  • Arduino used as ISP

8.2 Arduino IDE support

You can program the ATtiny family using the Arduino IDE by installing a proper core such as ATTinyCore.

Steps:

  1. Install the core
  2. Select the ATtiny variant
  3. Choose the clock (often internal 8 MHz)
  4. Burn bootloader to set fuses
  5. Upload program through programmer

8.3 debugWIRE

PB5 doubles as the debugWIRE interface which can be used for on-chip debugging. The datasheet lists debugWIRE under its special features.


9. Example Applications

9.1 Compact temperature logger

Uses: ADC, internal temperature sensor, EEPROM storage and watchdog for timed wakeups.

9.2 Wearable sensor modules

Uses: USI for I2C accelerometer, PWM for feedback and low-power sleep cycles.

9.3 Mini robotics controller

Uses: PWM for motor control, ADC for sensors, interrupts for quick response.

9.4 LED lighting systems

Uses: Timer0 and Timer1 PWM channels for precise brightness control.


10. Choosing Between ATtiny25 ATtiny45 ATtiny85

Application TypeSuggested Variant
Simple timing or logicATtiny25
Sensor reading and basic control loopsATtiny45
Projects requiring libraries or communication stacksATtiny85

The ATtiny85 is the most versatile and frequently used option.


11. Engineering Tips for Better Performance

11.1 Plan pin usage carefully

Since the chip has only six GPIO pins, map peripherals early in your design to avoid conflicts.

11.2 Use power reduction options

Disable unused modules like USI, ADC or timers to extend battery life.

11.3 Manage the reset pin with caution

PB5 can be turned into a GPIO only by disabling the reset fuse, but this requires high-voltage programming to recover. Use this only when absolutely necessary.

11.4 Avoid EEPROM reads at very low clock speeds

The datasheet warns that reading EEPROM below about 900 kHz internal clock may fail on certain device revisions.


12. Known Limitations and Errata Insights

The datasheet lists several errata items:

  • EEPROM read issues below 900 kHz on some revisions
  • PLL lock issues below 6 MHz on older ATtiny45 revisions
  • Some PWM output behavior differences in older silicon versions

Checking the revision code on your chip and verifying it with the errata section ensures stable operation.


13. Final Thoughts

The ATtiny25 ATtiny45 and ATtiny85 deliver a remarkable mix of capability and efficiency in a very small footprint. Their strong peripheral set, reliable timing features and low power consumption make them suitable for a wide range of modern embedded applications. Whether you are building wearables, compact robots, smart lighting or low-power sensors, the ATtiny family provides exactly the right balance of performance, flexibility and simplicity.
